| Produktbeschreibung |

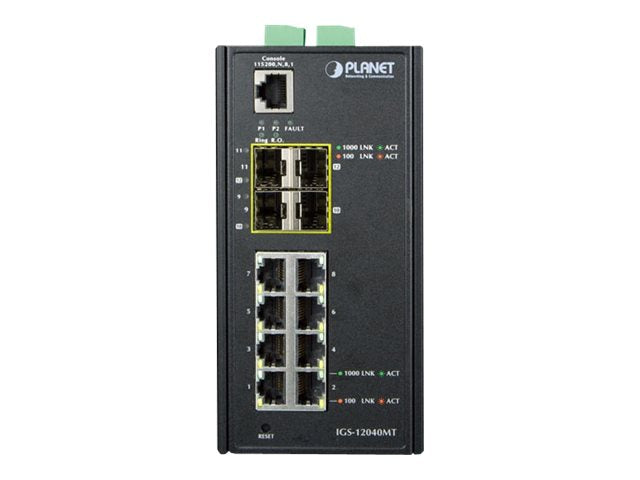

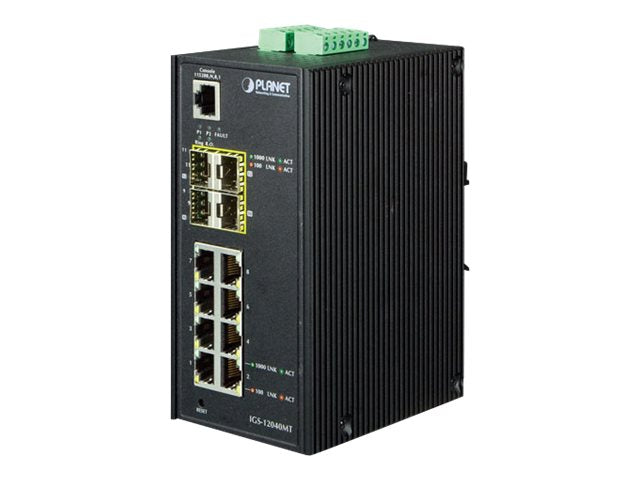

PLANET IGS-12040MT - Switch - 12 Anschlüsse - managed |
| Gerätetyp |
Switch - 12 Anschlüsse - managed |
| Untertyp |
Gigabit Ethernet |
| Ports |
8 x 10/100/1000 + 4 x Gigabit SFP |
| Leistung |
24 Gbps |
| Durchsatz |
17,85 Mpps |
| Kapazität |
4095 |
| Einträge in Routingtabelle |
32 |
| Jumbo-Rahmenunterstützung |
9KB |
| Routing Protocol |
IGMPv2, IGMP, IGMPv3, MLDv2, MLD |
| Remoteverwaltungsprotokoll |
SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI |
| Leistungsmerkmale |
Flusskontrolle, Routing, DHCP Support, Auto-Negotiation, BOOTP-Unterstützung, VLAN-Unterstützung, Syslog-Unterstützung, Port-Spiegelung, Store-and-Forward, IPv6-Unterstützung, Spanning Tree Protocol (STP) Support, unterstützt Rapid Spanning Tree Protocol (RSTP), Multiple Spanning Tree Protocol (MSTP) Support, DHCP-Snooping, Access Control List (ACL) Support, Quality of Service (QoS), Dynamic ARP Inspection (DAI), IPv4-Unterstützung, LLDP-Support, Link Aggregation Control Protocol (LACP), SNMP-Trap, Class of Service (CoS), Denial of Service (DoS), 6KV ESD Protector, unterstützt DiffServ Code Point (DSCP), Ethernet Ring Protection Switching (ERPS), IP-Quellwächter, Internet Control Message Protocol (ICMP) |
| Produktzertifizierungen |
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad |

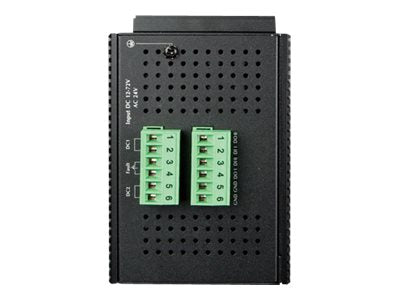

| Stromversorgung |
AC 24 V / DC 12 -72 V |
| Redundante Stromversorgung |
Ja |
| Abmessungen (Breite x Tiefe x Höhe) |
10.7 cm x 7.2 cm x 15.2 cm |
| Gewicht |
1.01 kg |
