Produktbeschreibung |

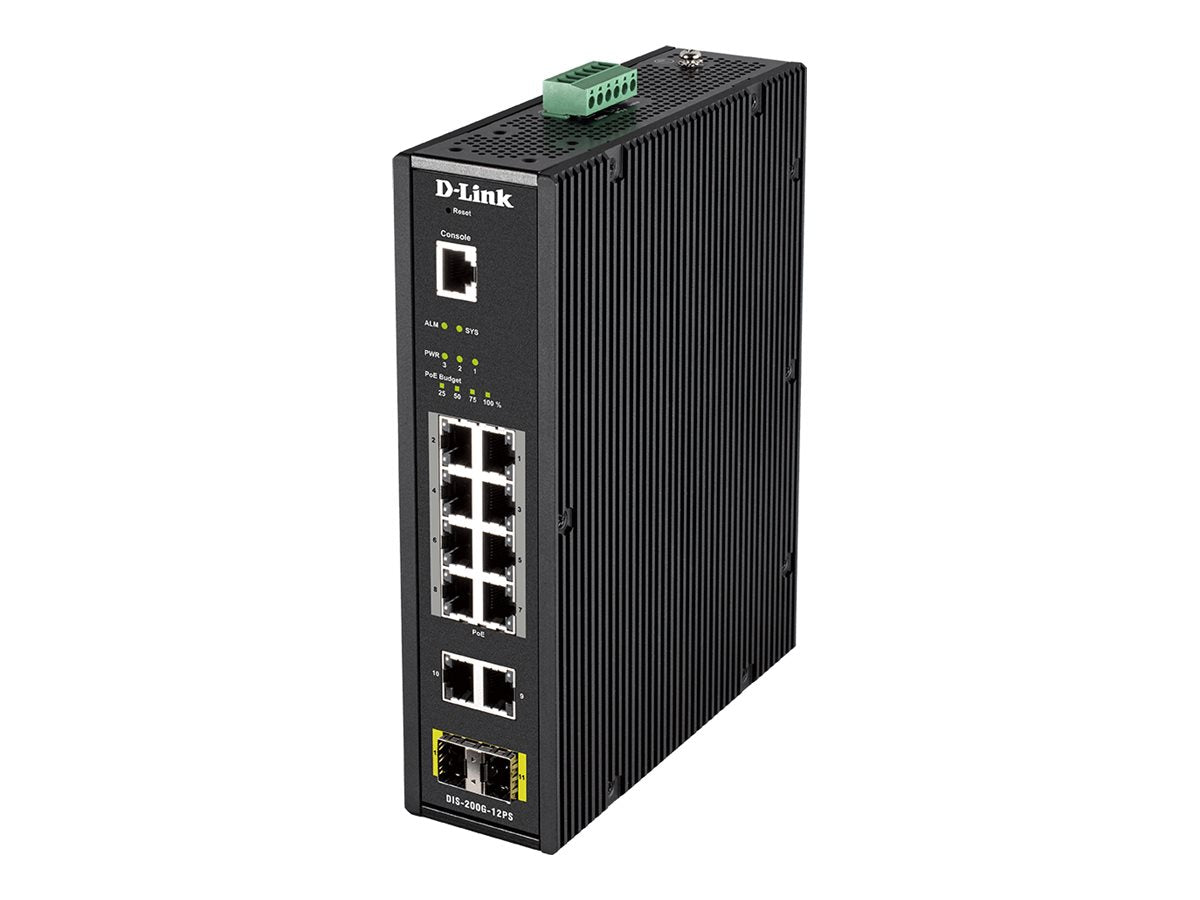

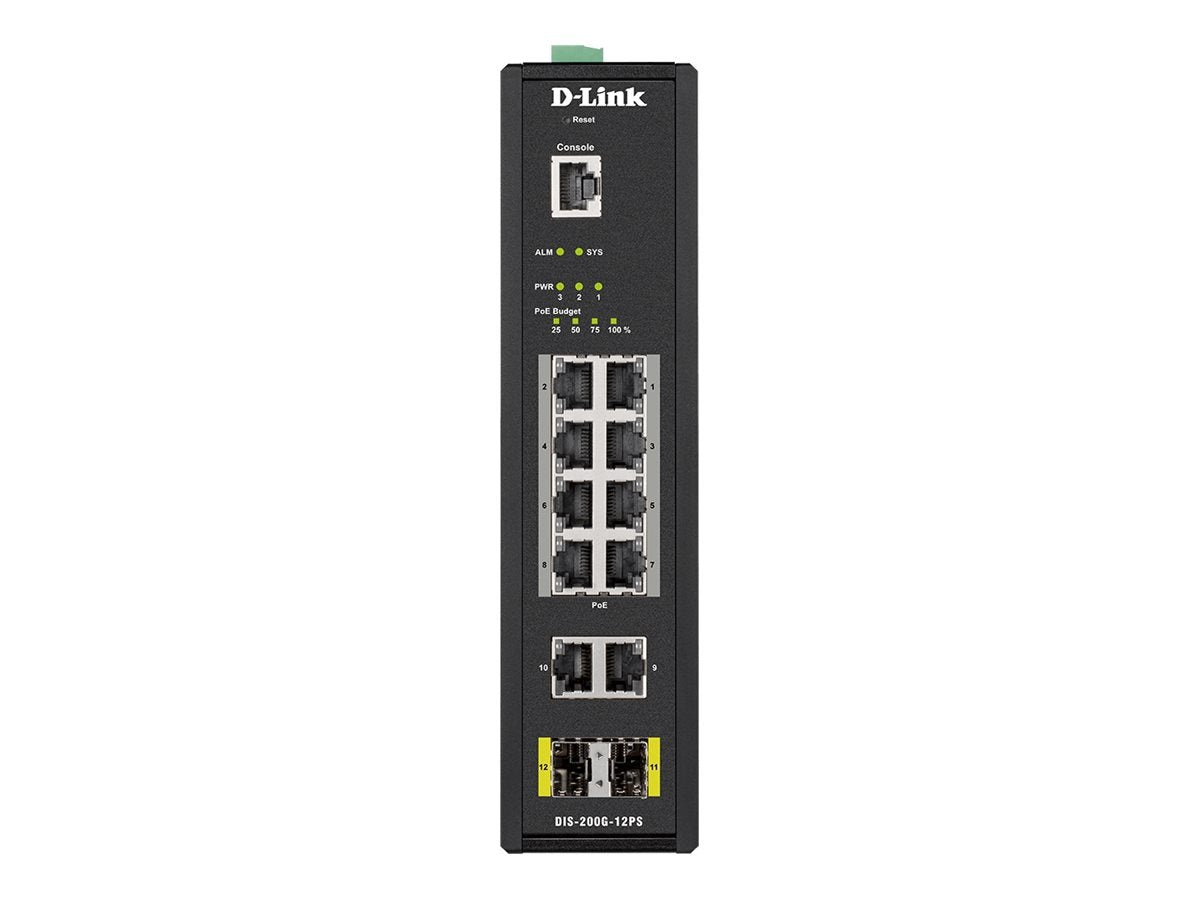

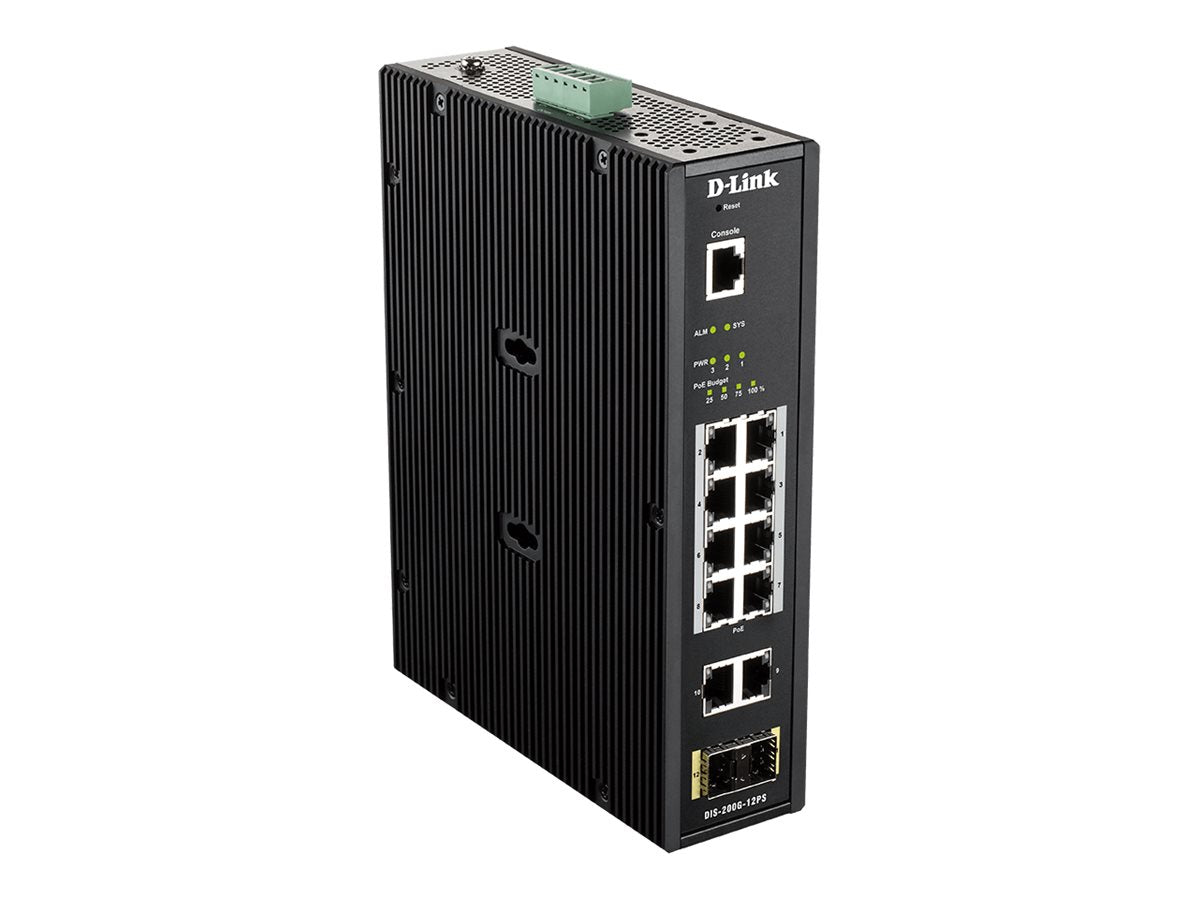

D-Link DIS 200G-12PS - Switch - 10 Anschlüsse - managed |
Gerätetyp |
Switch - 10 Anschlüsse - managed |
Untertyp |
Gigabit Ethernet |
Ports |
10 x 10/100/1000 (8 PoE+) + 2 x SFP |
Power Over Ethernet (PoE) |
PoE+ |
PoE-Budget |
240 W |
Leistung |
Switching-Kapazität: 24 Gbps |
Durchsatz (64-Byte Paketgröße): 17,85 Mpps |
Durchsatz (64-Byte Paketgröße): 17,85 Mpps |
Größe der MAC-Adresstabelle |
8000 Einträge |
Jumbo-Rahmenunterstützung |
9216 Byte |
Routing Protocol |
IGMPv2, IGMP, IGMPv3, MLDv2, MLD |
Remoteverwaltungsprotokoll |
Telnet, CLI |
Leistungsmerkmale |
Flusskontrolle, ARP-Unterstützung, Auto-Uplink (Auto MDI/MDI-X), IGMP Snooping, Schutz vor DoS-Angriffen, Port-Spiegelung, Store-and-Forward, Broadcast Storm Control, IPv6-Unterstützung, Multicast Storm Control, Unicast Storm Control, Dying-Gasp-Unterstützung, SNTP-Unterstützung, Spanning Tree Protocol (STP)-Unterstützung, Rapid Spanning Tree Protocol (RSTP)-Unterstützung, Multiple Spanning Tree Protocol (MSTP)-Unterstützung, Quality of Service (QoS), MLD-Snooping, Safeguard Engine, Reset-Taste, Cable Diagnostics Function, IPv4-Unterstützung, ohne Lüfter, LLDP-Support, Link Aggregation Control Protocol (LACP), Port Security, SNMP-Trap, DHCP-Client, 512-KB-Paketpuffer, Dynamic VLAN Support (GVRP), duale Firmware-Images, Strict Priority (SP), gekennzeichnetes VLAN, TFTP-Client, 802.1x-Authentifizierung, Ethernet Ring Protection Switching (ERPS), Digital Diagnostics Monitoring (DDM), Authentication, Authorization and Accounting (AAA), Web-based Access Control (WAC), Energieeffizientes Ethernet (EEE), Gewichtetes Rundlaufverfahren (WRR), Head-of-line (HOL) Blocking Prevention, Loopback-Erkennung |
Produktzertifizierungen |
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |

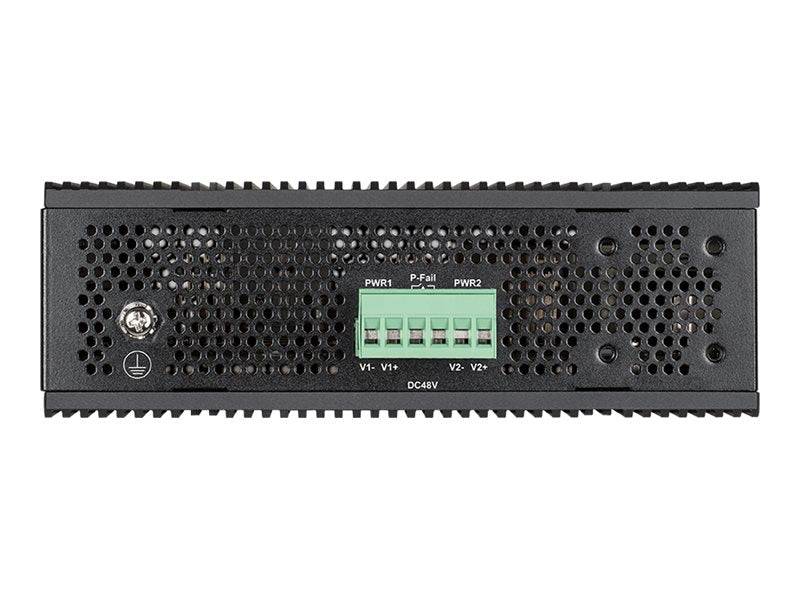

Stromversorgung |
AC 120/230 V/DC 46 - 54 V (50/60 Hz) |
Abmessungen (Breite x Tiefe x Höhe) |
21 cm x 17.12 cm x 4.8 cm |
Gewicht |
2.5 kg |
